06E MODEL CAPACITY CONTROL DIAGRAMS

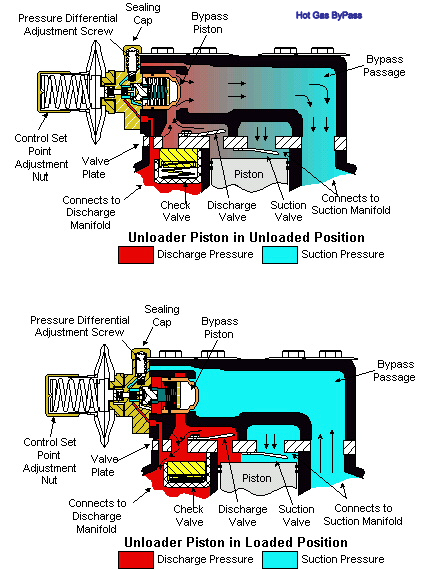

Diagram of regulator cross-sections showing pressure flow, valves, diaphragm, and piston in red, blue, and black.

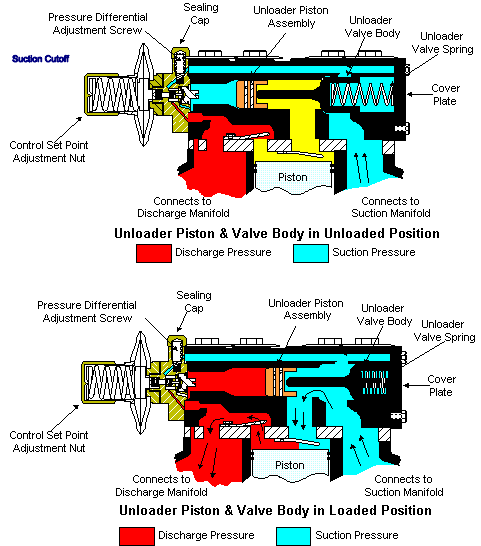

Technical diagram of unloader piston and valve body in unloaded and loaded positions, with color-coded sections and labels

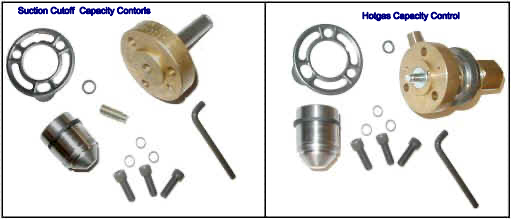

Side-by-side photos of silver and brass solenoid valve capacity control parts with screws and gaskets

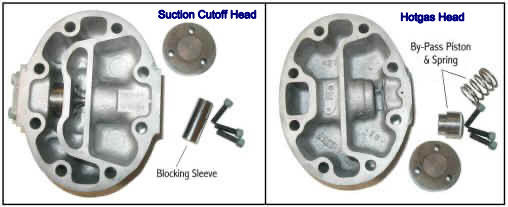

Side-by-side suction cuff and hotgas hood parts, with screws and labels on a white background
