06E WIRING DIAGRAM

Gray industrial compressor or pump with bolt flanges and copper fittings on a white background

Click To Download Chart

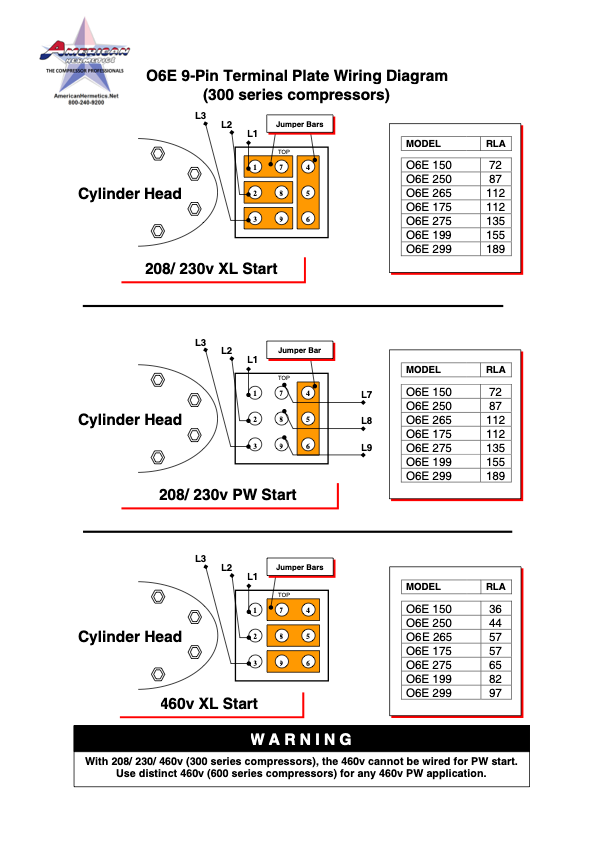

Manual page showing terminal plate wiring diagrams for cylinder head OEE-9P/40 series compressors.

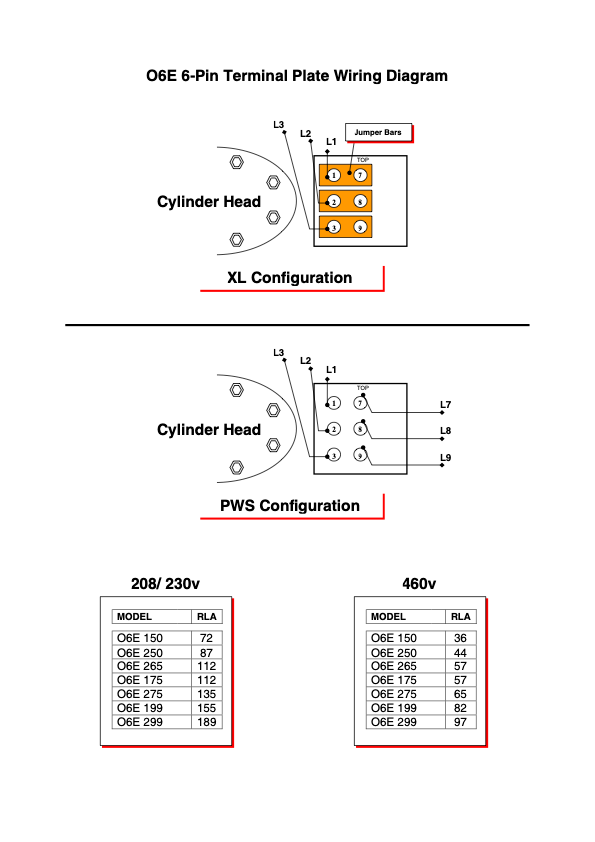

OEE 6-pin terminal plate wiring diagram with cylinder head and PVIS configurations, plus 230V and 400V tables
